Products > Planetary Gear Motor > 10-12-16mm

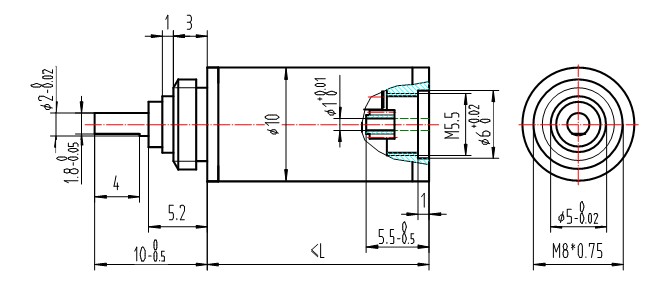

P10  Planetary Gearbox



0.02-0.06N.m


级数
Stages
长度
Length
(mm)
适配电机功率
Power of motor
(W)
效 率
Efficiency
(%)
空载回差
Backlash
no  load
重 量
Weight
(g)
1 10.5 less than 1.5 90 ≤3º 5
2 13.6 83 ≤3º 6.25
3 16.7 69 ≤3º 7.5
4 19.8 64 ≤3º 8.75
5 22.8 60 ≤3º 10

壳体材料  Housing material 不锈钢  Stainless steel
齿轮材料  Gear train material 钢   all steel
推荐最大输入转速 Recommended max. input speed for:
– 连续运转  continuous operation 15,000 rpm
输入输出旋转方向  Direction of rotation(reversible) =
输出端轴承  Bearings on output shaft 滑动轴承   sleeve bearing
输出轴负载  Shaft load, max.
最大允许径向载荷 radial (6 mm from mounting face) ≤8N
最大允许轴向载荷 axial Shaft press fit force, max. ≤8N
最大允许安装力   Shaft press fit force, max. ≤20N
输出轴间隙  Shaft play
–径向间隙   radial ( 5mm from flange ) ≤0.06mm
–轴向间隙   axial Operating temperature range ≤0.1 mm
推荐温度范围 Operating temperature range -40 to +125℃


















P10   ratio list
订货号     Order No. 速比         Reduction ratio 输出扭矩  Output torque(N.m) 级数       Stage
连续  Continuous 瞬时 Intermittent
1210004 12.25 0.02 0.04 2
1210007 16.63
1210009 22.56
1210010 42.88 0.04 0.06 3
1210013 58.19
1210017 78.97
1210019 107.17
1210020 150.06 0.06 0.08 4
1210023 203.66
1210028 276.39
1210032 375.1
1210034 509.07 0.04 0.06
1210035 525.22 0.06 0.1 5
1210038 712.8
1210043 967.37
1210049 1312.86
1210053 1781.73
1210055 2418.07 0.04 0.06

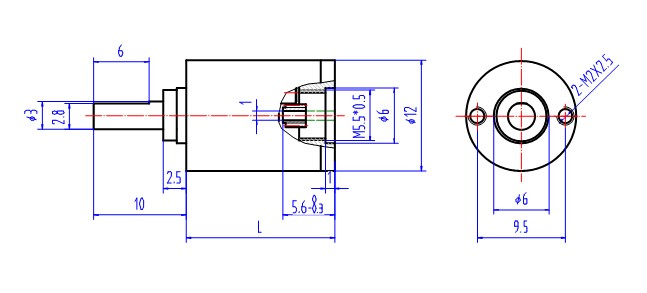

P12  Planetary Gearbox



0.05-0.1N.m
级数
Stages
长度
Length
(mm)
适配电机功率
Power of motor
(W)
效 率
Efficiency
(%)
空载回差
Backlash
no  load
重 量
Weight
(g)
1 15.1 less than 2.5 90 ≤3º 7
2 17.9 81 ≤3º 10
3 20.7 73 ≤3º 13
4 23.5 65 ≤3º 16.5
5 26.3 59 ≤3º 20

壳体材料  Housing material 不锈钢  Stainless steel
齿轮材料  Gear train material 钢   all steel
推荐最大输入转速 Recommended max. input speed for:
– 连续运转  continuous operation 15,000 rpm
输入输出旋转方向  Direction of rotation(reversible) =
输出端轴承  Bearings on output shaft 滑动轴承   sleeve bearing
输出轴负载  Shaft load, max.
最大允许径向载荷 radial (6 mm from mounting face) ≤8N
最大允许轴向载荷 axial Shaft press fit force, max. ≤8N
最大允许安装力   Shaft press fit force, max. ≤20N
输出轴间隙  Shaft play
–径向间隙   radial ( 5mm from flange ) ≤0.06 mm
–轴向间隙   axial Operating temperature range ≤0.1 mm
推荐温度范围 Operating temperature range -40 to +125℃

















P12   ratio list

订货号     Order No. 速比         Reduction ratio 输出扭矩  Output torque(N.m) 级数       Stage
连续  Continuous 瞬时 Intermittent
1212002 3.94 0.05 0.1 1
1212004 5.7
1212007 15.51 0.1 0.15 2
1212012 22.46
1212014 32.49
1212019 61.12 0.1 0.15 3
1212026 88.48
1212032 128.01
1212034 185.19
1212042 240.83 0.1 0.15 4
1212052 348.63
1212061 504.36
1212067 729.66
1212069 1055.6
1212081 948.87 0.1 0.2 5
1212094 1373.6
1212107 1987.19
1212117 2874.86
1212123 4159.06
1212125 6016.92 0.1 0.15

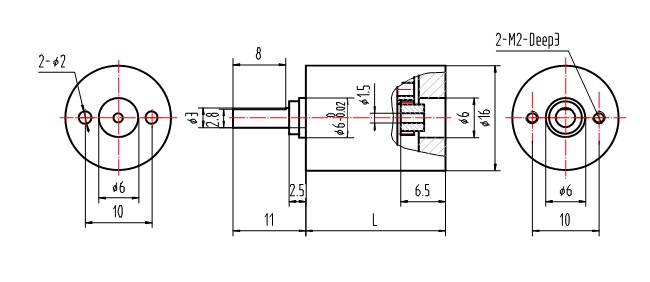

P16  Planetary Gearbox


0.15-0.35N.m

级数
Stages
长度
Length
(mm)
适配电机功率
Power of motor
(W)
效 率
Efficiency
(%)
空载回差
Backlash
no  load
重 量
Weight
(g)
1 14.8 less than 4.5 90 ≤2º 15
2 18.4 81 ≤2 º 20
3 22.0 73 ≤2º 25
4 25.6 65 ≤2º 30
5 29.2 59 ≤2º 35
壳体材料  Housing material 不锈钢  Stainless steel
齿轮材料  Gear train material 钢    all steel
推荐最大输入转速 Recommended max. input speed for:
– 连续运转  continuous operation 15,000 rpm
输入输出旋转方向  Direction of rotation(reversible) =
输出端轴承  Bearings on output shaft 滚动轴承  ball bearing
输出轴负载  Shaft load, max.
最大允许径向载荷 radial (6 mm from mounting face) ≤8N
最大允许轴向载荷 axial Shaft press fit force, max. ≤8N
最大允许安装力   Shaft press fit force, max. ≤100N
输出轴间隙  Shaft play
–径向间隙   radial ( 5mm from flange ) ≤0.02 mm
–轴向间隙   axial Operating temperature range ≤0.03 mm
推荐温度范围 Operating temperature range -30 to +125℃



















P16   ratio list

订货号     Order No. 速比         Reduction ratio 输出扭矩  Output torque(N.m) 级数       Stage
连续  Continuous 瞬时 Intermittent
1216001 3.79 0.15 0.2 1
1216002 4.31
1216003 5.08
1216004 14.36 0.2 0.23 2
1216005 16.34
1216006 18.59
1216007 19.24
1216008 21.88
1216009 25.79 0.15 0.2
1216010 54.43 0.25 0.35 3
1216011 61.95
1216012 70.44
1216013 72.93
1216014 80.11
1216015 82.93
1216016 94.31
1216017 97.75
1216018 111.16
1216019 131.02 0.2 0.3
1216020 206.3 0.3 0.4 4
1216021 234.77
1216022 266.98
1216023 276.39
1216024 303.61
1216025 314.31
1216026 345.27
1216027 357.43
1216028 370.46
1216029 406.47
1216030 421.29
1216031 479.09
1216032 496.55
1216033- 564.68
1216034 665.57 0.25 0.35
