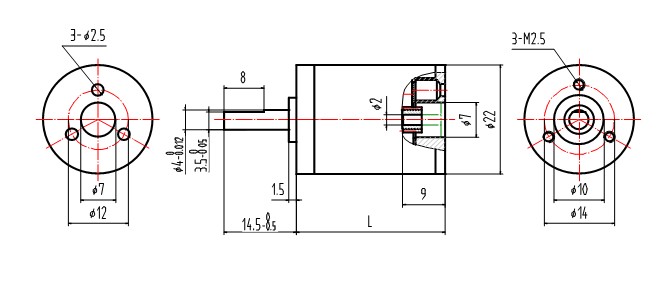

P22  Planetary Gearbox


0.5-1.2N.m

级数
Stages
长度
Length
(mm)
适配电机功率
Power of motor
(W)
效 率
Efficiency
(%)
空载回差
Backlash
no  load
重 量
Weight
(g)
1 20.3 less than 10 90 ≤1º 35
2 24.1 81 ≤1.2º 43
3 27.8 73 ≤1.5º 51
4 31.7 65 ≤1.8º 59
5 35.5 59 ≤1.8º 67
壳体材料  Housing material 不锈钢/碳钢  Stainless steel
齿轮材料  Gear train material 钢 steel
推荐最大输入转速 Recommended max. input speed for:
– 连续运转  continuous operation 12,000 rpm
输入输出旋转方向  Direction of rotation(reversible) =
输出端轴承  Bearings on output shaft 滚动轴承  ball bearing
输出轴负载  Shaft load, max.
最大允许径向载荷 radial (6 mm from mounting face) ≤70N
最大允许轴向载荷 axial Shaft press fit force, max. ≤8N
最大允许安装力   Shaft press fit force, max. ≤100N
输出轴间隙  Shaft play
–径向间隙   radial ( 5mm from flange ) ≤0.02mm
–轴向间隙   axial Operating temperature range ≤0.03 mm
推荐温度范围 Operating temperature range -40 to +125℃
















P22   ratio list
订货号     Order No. 速比         Reduction ratio 输出扭矩  Output torque(N.m) 级数       Stage
连续  Continuous 瞬时 Intermittent
1222001 3.57 0.15 0.3 1
1222003 4.6
1222005 12.75 0.3 0.6 2
1222008 16.42
1222011 21.16
1222015 45.52 0.45 0.9 3
1222018 58.63
1222023 75.54
1222028 97.34
1222035 162.5 0.6 1.2 4
1222038 209.3
1222044 269.68
1222051 347.49
1222059 447.75
1222070 580.12 0.75 1.5 5
1222073 747.19
1222079 962.77
1222088 1240.54
1222099 1598.45
1222109 2059.63

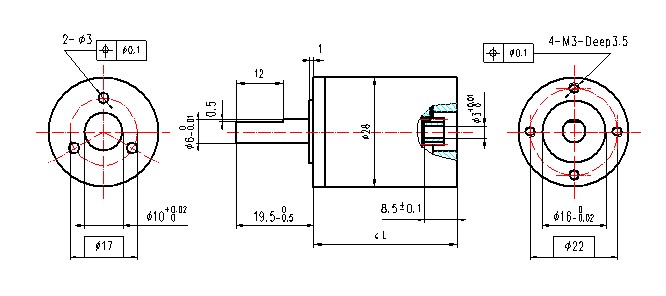

P28  Planetary Gearbox



0.5-4N.m

级数
Stages
长度
Length
(mm)
适配电机功率
Power of motor
(W)
效 率
Efficiency
(%)
空载回差
Backlash
no  load
重 量
Weight
(g)
1 23.2 less than 20 90 ≤1 º 50
2 27.7 81 ≤1.5º 65
3 32.2 73 ≤1.5º 85
4 36.7 65 ≤1.5º 95
5 41.2 60 ≤1.5º 110
壳体材料  Housing material 不锈钢  Stainless steel
齿轮材料  Gear train material 钢   all steel
推荐最大输入转速 Recommended max. input speed for:
– 连续运转  continuous operation 6,000 rpm
输入输出旋转方向  Direction of rotation(reversible) =
输出端轴承  Bearings on output shaft 轴承   ball bearing
输出轴负载  Shaft load, max.
最大允许径向载荷 radial (6 mm from mounting face) ≤100N
最大允许轴向载荷 axial Shaft press fit force, max. ≤80N
最大允许安装力   Shaft press fit force, max. ≤100N
输出轴间隙  Shaft play
–径向间隙   radial ( 5mm from flange ) ≤0.02mm
–轴向间隙   axial Operating temperature range ≤0.02mm
推荐温度范围 Operating temperature range -40 to +125℃
















P28   ratio list
订货号     Order No. 速比         Reduction ratio 输出扭矩  Output torque(N.m) 级数       Stage
连续  Continuous 瞬时 Intermittent
1228001 3.57 0.4 0.8 1
1228002 4
1228003 4.6
1228004 5.5
1228005 12.75 2 3 2
1228006 14.28
1228007 16
1228008 16.42
1228009 18.4
1228010 19.64
1228011 21.16
1228012 22
1228013 25.3
1228014 30.25
1228015 45.52
3


4.5

3
1228016 50.98
1228017 57.12
1228018 58.63
1228019 64
1228020 65.69
1228021 70.1
1228022 73.6
1228023 75.54
1228024 78.54
1228025 84.64
1228026 88
1228027 90.32
1228028 97.34
1228029 101.2
1228030 107.99
1228031 116.38
1228032 121
122803 139.15
1228034 166.38
1228035 162.5



4




6


4
1228036 182
1228037 203.92
1228038 209.3
1228039 228.48
1228040 234.51
1228041 250.25
1228042 256
1228043 262.75
1228044 269.68
1228045 280.39
1228046 294.4
1228047 302.16
1228048 314.16
1228049 322.45
1228050 338.56
1228051 347.49
1228052 352
1228053 361.28
1228054 385.53
1228055 389.34
1228056 404.8
1228057 415.48
1228058 431.97
1228059 447.75
1228060 465.52
1228061 484
1228062 496.77
1228063 535.35
1228064 556.6
1228065 593.96
1228066 640.09
1228067 665.5
1228068 765.33 3 4
1228069 915.06 2 3
1228070 580.12





























1228071 649.73
1228072 727.99
1228073 747.19
1228074 815.67
1228075 837.19
1228076 893.38
1228077 913.92
1228078 938.02
1228079 962.77
1228080 1000.98 4 5 5
1228081 1024
1228082 1051.01
1228083 1078.73
1228084 1121.55
1228085 1151.13
1228086 1177.6
1228087 1208.66
1228088 1240.54
1228089 1256.64
1228090 1289.78
1228091 1354.24
1228092 1376.35
122809 1389.96
1228094 1408
1228095 1445.14
1228096 1483.25
1228097 1542.13
1228098 1557.38
1228099 1598.45
1228100 1619.2
1228101 1661.91
1228102 1727.88
1228103 1773.45
1228104 1790.98
1228105 1862.08
1228106 1911.19
1228107 1936
1228108 1987.06
1228109 2059.63
1228110 2120.43
1228111 2141.39
1228112 2226.4
1228113 2285.12
122811 2375.84
1228115 2462.6
1228116 2560.36
1228117 2662
1228118 2732.21
1228119 2944.41
1228120 3061.3
1228121 3266.77
1228122 3520.5
1228123 3660.25 4 5
1228124 4209.29 3 4
1228125 5032.84 2 3
