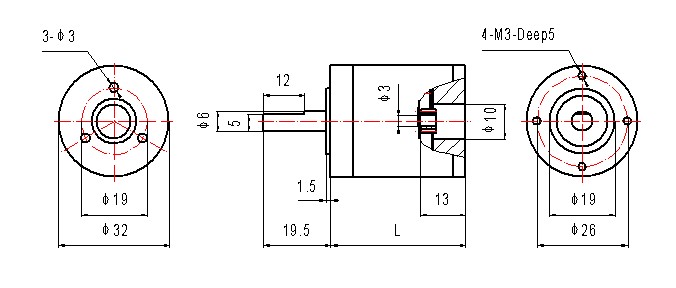

 P32  Planetary Gearbox


1-6N.m

级数
Stages
长度
Length
(mm)
适配电机功率
Power of motor
(W)
效 率
Efficiency
(%)
空载回差
Backlash
no  load
重 量
Weight
(g)
1 30.9 less than 40 90 ≤1º 125
2 37.2 81 ≤1.2 º 147
3 43.5 73 ≤1.5º 169
4 49.8 65 ≤1.5º 191
5 56.1 59 ≤1.5º 213
壳体材料  Housing material 不锈钢  Stainless steel
齿轮材料  Gear train material 钢   all steel
推荐最大输入转速 Recommended max. input speed for:
– 连续运转  continuous operation 6,000 rpm
输入输出旋转方向  Direction of rotation(reversible) =
输出端轴承  Bearings on output shaft 滚动轴承   ball bearing
输出轴负载  Shaft load, max.
最大允许径向载荷 radial (6 mm from mounting face) ≤140N
最大允许轴向载荷 axial Shaft press fit force, max. ≤100N
最大允许安装力   Shaft press fit force, max. ≤140N
输出轴间隙  Shaft play
–径向间隙   radial ( 5mm from flange ) ≤0.02mm
–轴向间隙   axial Operating temperature range ≤0.02mm
推荐温度范围 Operating temperature range -40 to +125℃

















P32   ratio list
订货号     Order No. 速比
  Reduction ratio
输出扭矩  Output torque(N.m) 级数       Stage
连续  Continuous 瞬时
Intermittent
1232001 3.11 1 1.25 1
1232002 3.71
1232003 4.8
1232004 5.75
1232006 9.68 3 3.75 2
1232007 11.56
1232008 13.8
1232009 14.93
1232010 17.83
1232011 17.89
1232012 21.36
1232014 23.04
1232016 27.6
1232017 33.06
1232021 30.1 6 7.5 3
1232022 35.94
1232023 42.91
1232024 46.44
1232025 51.18
1232026 55.45
1232027 55.63
1232028 66.14
1232029 66.42
1232031 71.65
1232032 79.24
1232034 85.48
1232035 85.84
1232037 102.4
1232038 102.82
1232040 110.59
1232041 122.66
1232044 132.48
1232046 158.7
1232049 190.11 4 5
1232056 93.62 6 7.5 4
1232057 111.77
1232058 133.44
1232059 144.44 6 7.5
1232060 159.18
1232061 172.44
1232062 173.02
1232063 189.89
1232064 205.71
1232065 206.57
1232067 222.85
1232068 245.39
1232069 246.42
1232071 265.84
1232072 266.95
1232073 293.96
1232075 317.12
1232076 318.45
1232077 319.78
1232079 343.94
1232081 379.89
1232082 381.48
1232085 410.3
1232086 412.01
1232087 455.08
1232090 491.5
1232091 493.56
1232094 530.84
1232096 588.78
1232097 591.24
1232101 635.9
1232102 705.31
1232106 761.76
1232110 912.53
1232114 1093.13 4 5
1232126 291.15 6 7.5 5
1232127 347.59
1232128 414.98
1232129 449.2
1232130 495.05
1232131 536.29
1232132 538.1
1232133 590.55
1232134 639.75
1232135 642.43
1232137 693.05 6 7.5 5
1232138 704.49
123213 763.18
1232140 766.37
1232142 826.76
1232143 830.21
1232144 910.41
1232145 914.22
1232147 986.26
1232148 990.38
1232149 994.53
1232151 1069.66
1232152 1090.6
1232154 1176.53
1232155 1181.46
1232156 1186.4
1232159 1276.02
1232160 1281.36
1232162 1409.39
1232163 1415.28
1232166 1522.2
1232167 1528.57
1232168 1534.96
1232171 1650.92
1232172 1688.33
1232175 1823.47
1232176 1831.1
1232177 1838.76
1232181 1969.42
1232182 1977.66
1232184 2184.36
1232185 2193.5
1232190 2359.2
1232191 2369.07
1232194 2548.04
1232195 2616.68
1232199 2826.13
1232200 2837.95
1232205 3052.34
1232207 3385.47
1232208 3399.63
1232213 3656.45
1232217 4055.51
1232221 4380.12 6 7.5
1232227 5247.02
1232234 6285.49 4 5

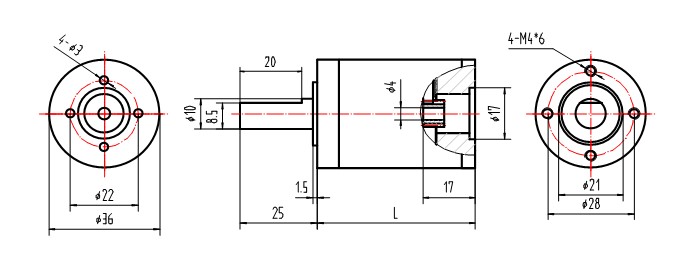

P36  Planetary Gearbox

3-20N.m
级数
Stages
长度
Length
(mm)
适配电机功率
Power of motor
(W)
效 率
Efficiency
(%)
空载回差
Backlash
no  load
重 量
Weight
(g)
1 37.6 less than 100 90 ≤1º 210
2 44.4 83 ≤1.2º 245
3 51.2 77 ≤1.5º 280
4 58 72 ≤1.5º 315
5 64.8 67 ≤1.5º 350

壳体材料  Housing material 不锈钢  Stainless steel
齿轮材料  Gear train material 钢   all steel
推荐最大输入转速 Recommended max. input speed for:
– 连续运转  continuous operation 6,000 rpm
输入输出旋转方向  Direction of rotation(reversible) =
输出端轴承  Bearings on output shaft 滚动轴承   ball bearing
输出轴负载  Shaft load, max.
最大允许径向载荷 radial (6 mm from mounting face) ≤500N
最大允许轴向载荷 axial Shaft press fit force, max. ≤120N
最大允许安装力   Shaft press fit force, max. ≤220N
输出轴间隙  Shaft play
–径向间隙   radial ( 5mm from flange ) ≤0.02 mm
–轴向间隙   axial Operating temperature range ≤0.02mm
推荐温度范围 Operating temperature range -40 to +125℃

















P36   ratio list
订货号     Order No. 速比         Reduction ratio 输出扭矩  Output torque(N.m) 级数       Stage
连续  Continuous 瞬时 Intermittent
1236001 3.5 3 5 1
1236002 4
1236003 4.75
1236004 6
1236005 12.25 8 12 2
1236006 14
1236007 16
1236008 16.63
1236009 19
1236010 21
1236011 22.56
1236012 24
1236013 28.5
1236014 36 6 8
1236015 42.88 16 25 3
1236016 49
1236017 56
1236018 58.19
1236019 64
1236020 66.5
1236021 73.5
1236022 76
1236023 78.97
1236024 84
1236025 90.25
1236026 96
1236027 99.75
1236028 107.17 10 12
1236029 114 16 25
1236030 126 10 12
1236031 135.38
1236032 144
123603 171
1236034 216 8 10
1236035 150.06 16 25
4

4
1236036 171.5
1236037 196
1236038 203.66
1236039 224 16 25
1236040 232.75
1236041 256
123604 257.25
1236043 266
1236044 276.39
1236045 294
1236046 304
1236047 315.88
1236048 336
1236049 349.13
1236050 361
1236051 375.1
1236052 384
1236053 399
1236054 428.69
1236055 441
1236056 456
1236057 473.81
1236058 504
1236059 509.07 10 12
1236060 541.5 16 25
1236061 576
1236062 598.5
1236063 643.03 10 12
1236064 684 16 25
1236065 756 10 12
1236066 812.25
1236067 864
1236068 1026
1236069 1296 8 10
1236070 525.22




20








20



30





5





5
1236071 600.25
1236072 686
1236073 712.8
1236074 784
1236075 814.63
1236076 896
1236077 900.38
1236078 931
1236079 967.37
1236080 1024
1236081 1029
1236082 1064
1236083 1105.56 30
1236084 1176
1236085 1216
1236086 1221.94
1236087 1263.5
1236088 1312.86
1236089 1344
1236090 1396.5
1236091 1444
1236092 1500.41
1236093 1536
1236094 1543.5
123609 1596
1236096 1658.34
1236097 1714.75
1236098 1764
123609 1781.73
1236100 1824
1236101 1895.25
1236102 2016
1236103 2036.27
1236104 2094.75
1236105 2166
1236106 2250.61
1236107 2304
1236108 2394
1236109 2418.07 10 12
1236110 2572.13 20 30
1236111 2646
1236112 2736
1236113 2842.88
1236114 3024
1236115 3054.4 10 12
1236116 3249 20 30
1236117 3456
1236118 3591
1236119 3858.19 10 12
1236120 4104 20 30
1236121 4536 &l
