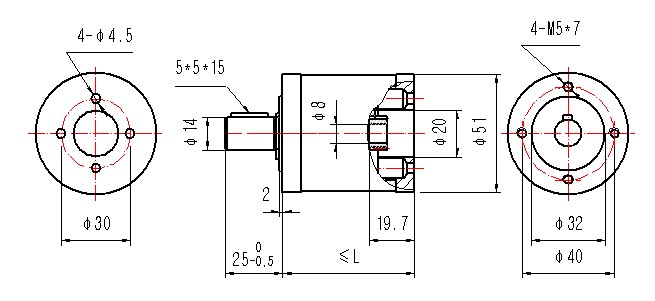

P50  Planetary Gearbox

3.9~33N.m


壳体材料  Housing material 碳钢  Carbon steel
齿轮材料  Gear train material 钢   all steel
推荐最大输入转速 Recommended max. input speed for:
– 连续运转  continuous operation 3,000 rpm
输入输出旋转方向  Direction of rotation(reversible) =
输出端轴承  Bearings on output shaft 滚动轴承   ball bearing
输出轴负载  Shaft load, max.
最大允许径向载荷 radial (6 mm from mounting face) ≤1000N
最大允许轴向载荷 axial Shaft press fit force, max. ≤500N
最大允许安装力   Shaft press fit force, max. ≤1200N
输出轴间隙  Shaft play
–径向间隙   radial ( 5mm from flange ) ≤0.02 mm
–轴向间隙   axial Operating temperature range ≤0.02 mm
推荐温度范围 Operating temperature range -40 to +125℃

















P50   ratio list
订货号     Order No. 速比
Reduction ratio
输出扭矩  Output torque(N.m) 级数       Stage
连续  Continuous 瞬时 Intermittent
1250001 3.7 3.9 5.5 1
1250002 5.2
1250003 13.7 15 22 2
1250004 19
1250005 27
1250006 51 33 44 3
1250007 71
1250008 100
1250009 138
1250010 187 33 44
4
1250011 262
1250012 368
1250013 514
1250014 720

Gear Motor Technical Data

Rated voltage Gear Ratio 1/3.7 1/5.2 1/13.7 1/19 1/27 1/51 1/71 1/100 1/138
Gearbox Length(mm) 44.5 57.8 71
12V Rated Torque(kg.cm) 1.2 1.7 4.2 5.9 8.3 14.3 19.9 28.1 39
Rated Speed(rpm) 559 398.1 151.1 107.8 76.7 40.6 29.2 20.7 14.9
Stall Torque(kg.cm) 6.4 9 22.1 30.9 43.5 74.9 104.2 146.8 204
24V Rated Torque(kg.cm) 1.8 2.5 6.1 8.6 12.1 20.8 29 40.8 56.7
Rated Speed(rpm) 946 673.1 255.5 182.3 129.6 68.6 49.3 35 25.2
Stall Torque(kg.cm) 12.8 18 44.2 61.9 87.1 149.8 208.6 293.8 408.3

Rated voltage Gear Ratio 1/187 1/262 1/368 1/514 1/720
Gearbox Length(mm) 84.5

12V Rated Torque(kg.cm) 51.4 72.1 101.2 141.4 198
Rated Speed(rpm) 11.1 7.9 5.6 4 2.9
Stall Torque(kg.cm) 269.1 377 529.5 739.6 900
24V Rated Torque(kg.cm) 74.8 104.8 147.2 205.6 288
Rated Speed(rpm) 18.7 13.4 9.5 6.8 4.9
Stall Torque(kg.cm) 538.6 754.6 1059.8 1480.3 900

DC Motor Technical Data
Model Rated Voltage No Load At Max Efficiency Stall
Speed Current Speed Current   Torque Output   Torque Current
rpm A rpm A mN.m g.cm W mN.m g.cm A
ZY5078TR6 12V 2500 0.30 2070 1.400 54.00 550 11.0 230.0 2346.0 5.030
ZY5078TR6 24V 4000 0.25 350 0.800 78.43 800 20.0 300.0 3050.0 6.600


P52  Planetary Gearbox


4-35N.m
级数
Stages
长度
Length
(mm)
适配电机功率
Power of motor
(W)
效 率
Efficiency
(%)
空载回差
Backlash
no  load
重 量
Weight
(g)
1 45 less than 150 90 ≤0.5º 475
2 53.5 80 ≤0.8º 575
3 62 73 ≤1º 675
4 70.5 66 ≤1º 775
5 79 59 ≤1º 875

壳体材料  Housing material 合金钢    alloy steel
齿轮材料  Gear train material 钢   all steel
推荐最大输入转速 Recommended max. input speed for:
– 连续运转  continuous operation 3,000 rpm
输入输出旋转方向  Direction of rotation(reversible) =
输出端轴承  Bearings on output shaft 滚动轴承   ball bearing
输出轴负载  Shaft load, max.
最大允许径向载荷 radial (6 mm from mounting face) ≤1000N
最大允许轴向载荷 axial Shaft press fit force, max. ≤500N
最大允许安装力   Shaft press fit force, max. ≤1200N
输出轴间隙  Shaft play
–径向间隙   radial ( 5mm from flange ) ≤0.02 mm
–轴向间隙   axial Operating temperature range ≤0.02 mm
推荐温度范围 Operating temperature range -40 to +125℃

















P52  ratio list
订货号     Order No. 速比         Reduction ratio 输出扭矩  Output torque(N.m) 级数       Stage
连续  Continuous 瞬时 Intermittent
1252002 3.56 4 6 1
1252003 4
1252004 5.6
1252005 6.75
1252009 12.66 15 22.5 2
1252010 14.24
1252011 16
1252013 19.94
1252015 22.4
1252016 24.03
1252017 27
1252018 31.36
1252019 37.8 12 15
1252020 45.56 10 12
1252026 45.06 35 45 3
1252028 50.69
1252030 56.96
1252032 64
1252035 70.97
1252037 79.74
1252039 85.55
1252040 89.6
1252041 96.12
1252043 108
1252044 111.64
1252046 125.44
1252047 134.57
1252049 151.2
1252050 162.2
1252051 175.62
1252052 182.25
1252053 211.68
1252054 255.15
1252055 307.55 10 12
1252064 160.42 35 45 4
1252067 180.47
1252071 202.78
1252074 227.84 35 45
1252077 252.66
1252078 256
1252082 283.89
1252085 304.55
1252086 318.98
1252088 342.19
1252090 358.4
1252092 384.48
1252094 397.44
1252096 432
1252098 446.57
1252100 479.06
1252102 501.76
1252103 538.27
1252106 577.44
1252107 604.8
1252108 625.19
1252109 648.81
1252111 702.46
1252112 729
1252113 753.58
1252115 846.72
1252116 908.33
1252118 983.45
1252119 1020.6
1252120 1094.87
1252121 1185.41
1252122 1230.19
1252123 1428.84
1252124 1722.26
1252125 2075.94 10 12
1252138 571.09 35 45 5
1252143 642.48
1252148 721.89
1252153 811.11
1252157 899.47
1252158 911.36
1252163 1010.64
1252164 1024
1252168 1084.19
1252171 1135.55
1252174 1218.19
1252176 1275.9
1252180 1368.75 30 45
1252182 1414.9
1252183 1433.6
1252186 1537.92
1252189 1589.78
1252192 1705.46
1252193 1728
1252196 1786.27
1252198 1916.25
1252201 2007.04
1252203 2055.69
1252204 2153.09
1252206 2225.69
1252208 2309.76
1252210 2419.2
1252212 2500.77
1252213 2595.24
1252215 2682.75
1252217 2809.86
1252218 2916
1252220 3014.32
1252223 3233.67
1252225 3386.88
1252226 3501.08
1252227 3633.34
1252230 3897.73
1252231 3933.8
1252232 4082.4
1252233 4220.05
1252234 4379.47
1252236 4741.63
1252237 4920.75
1252238 5086.67
1252240 5507.32
1252241 5715.36
1252242 6131.25
1252244 6638.28
1252245 6889.05
1252246 7390.35
1252247 8001.5
1252248 8303.77
1252249 9644.67
1252250 11625.27 30 45
1252251 14012.6 10 12
