Products > Planetary Gear Motor > 60-62mm

P60  Planetary Gearbox
4-33N.m


壳体材料  Housing material 不锈钢  Stainless steel
齿轮材料  Gear train material 钢   all steel
推荐最大输入转速 Recommended max. input speed for:
– 连续运转  continuous operation 3,000 rpm
输入输出旋转方向  Direction of rotation(reversible) =
输出端轴承  Bearings on output shaft 滚动轴承   ball bearing
输出轴负载  Shaft load, max.
最大允许径向载荷 radial (6 mm from mounting face) ≤1000N
最大允许轴向载荷 axial Shaft press fit force, max. ≤500N
最大允许安装力   Shaft press fit force, max. ≤1200N
输出轴间隙  Shaft play
–径向间隙   radial ( 5mm from flange ) ≤0.02 mm
–轴向间隙   axial Operating temperature range ≤0.02 mm
推荐温度范围 Operating temperature range -40 to +125℃

















P60   ratio list
订货号     Order No. 速比
Reduction ratio
输出扭矩  Output torque(N.m) 级数       Stage
连续  Continuous 瞬时 Intermittent
1260001 3.7 4 6 1
1260002 5.2
1260003 13.7 15 22 2
1260004 19
1260005 27
1260006 51 33 44 3
1260007 71
1260008 100
1260009 138
1260010 187 33 44
4
1260011 262
1260012 368
1260013 514
1260014 720

Gear Motor Technical Data

Rated voltage Gear Ratio 1/3.7 1/5.2 1/13.7 1/19 1/27 1/51 1/71 1/100 1/138
Gearbox Length(mm) 44.5 57.8 71
12V Rated Torque(kg.cm) 1.3 1.9 4.6 6.5 9.1 15.6 21.7 30.6 42.5
Rated Speed(rpm) 559 398.1 151.1 107.8 76.7 40.6 29.2 20.7 14.9
Stall Torque(kg.cm) 7.0 9.8 24.1 33.8 47.5 81.7 113.7 160.1 222.6
24V Rated Torque(kg.cm) 2.3 3.2 7.8 11.0 15.4 26.5 36.9 52.0 72.3
Rated Speed(rpm) 905 644.2 244.5 174.5 124.1 65.7 47.2 33.5 24.1
Stall Torque(kg.cm) 12.5 17.6 43.3 60.7 85.4 146.9 204.6 288.1 400.5

Rated voltage Gear Ratio 1/187 1/262 1/368 1/514 1/720
Gearbox Length(mm) 84.5

12V Rated Torque(kg.cm) 56.1 78.6 110.4 154.2 216.0
Rated Speed(rpm) 11.1 7.9 5.6 4.0 2.9
Stall Torque(kg.cm) 293.5 411.3 577.7 806.9 900.0
24V Rated Torque(kg.cm) 95.4 133.6 1187.7 262.1 367.2
Rated Speed(rpm) 17.9 12.8 9.1 6.5 4.7
Stall Torque(kg.cm) 528.2 740.0 1039.5 1451.9 900.0

DC Motor Technical Data
Model Rated Voltage No Load At Max Efficiency Stall
Speed Current Speed Current   Torque Output   Torque Current
rpm A rpm A mN.m g.cm W mN.m g.cm A
ZY6081TR8 12V 2500 0.75 2070 5.500 58.00 600 15.0 245.0 250.0 19.0
ZY6081TR8 24V 4000 0.35 3350 2.500 100.00 1020 30.0 500.0 5100.0 9.1

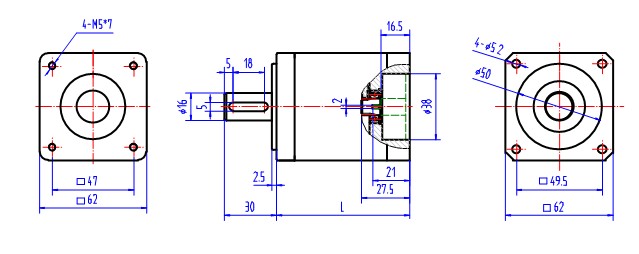

P62  Planetary Gearbox



4-30N.m
级数
Stages
长度
Length
(mm)
适配电机功率
Power of motor
(W)
效 率
Efficiency
(%)
空载回差
Backlash
no  load
重 量
Weight
(g)
1 59.7 less than 200 90 ≤1º 675
2 68.2 81 ≤1.2º 805
3 76.7 73 ≤1.5º 935
4 85.2 66 ≤1.8º 1065


壳体材料  Housing material 不锈钢  Stainless steel
齿轮材料  Gear train material 钢   all steel
推荐最大输入转速 Recommended max. input speed for:
– 连续运转  continuous operation 3,000 rpm
输入输出旋转方向  Direction of rotation(reversible) =
输出端轴承  Bearings on output shaft 滚动轴承   ball bearing
输出轴负载  Shaft load, max.
最大允许径向载荷 radial (6 mm from mounting face) ≤1000N
最大允许轴向载荷 axial Shaft press fit force, max. ≤500N
最大允许安装力   Shaft press fit force, max. ≤1200N
输出轴间隙  Shaft play
–径向间隙   radial ( 5mm from flange ) ≤0.02 mm
–轴向间隙   axial Operating temperature range ≤0.02 mm
推荐温度范围 Operating temperature range -40 to +125℃

















P62   ratio list
订货号     Order No. 速比
 Reduction ratio
输出扭矩  Output torque(N.m) 级数       Stage
连续  Continuous 瞬时
Intermittent
1262001 3 4 6 1
1262002 4
1262003 5
1262004 7
1262005 10
1262006 9 15 20 2
1262007 12
1262008 15
1262009 16
1262010 20
1262011 21
1262012 25
1262013 28
1262014 30
1262015 35
1262016 40
1262017 49
1262018 50
1262019 70
1262020 100 10 12
1262021 27 30 45








3









1262022 36
1262023 45
1262024 48
1262025 60
1262026 63
1262027 64
1262028 75
1262029 80
1262030 84
1262031 90
1262032 100
1262033 105
1262034 112
1262035 120
1262036 125
1262037 140
1262038 147
1262039 150 30
45
3
1262040 160
1262041 175
1262042 196
1262043 200
1262044 210
1262045 245
1262046 250
1262047 280
1262048 300
1262049 343
1262050 350
1262051 400
1262052 490
1262053 500
1262054 700 20 25
1262055 1000 10 12
1262056 81 30 45 4
1262057 108
1262058 135
1262059 144
1262060 180
1262061 189
1262062 192
1262063 225
1262064 240
1262065 252
1262066 256
1262067 270
1262068 300
1262069 315
1262070 320
1262071 336
1262072 360
1262073 375
1262074 400
1262075 420
1262076 441
1262077 448
1262078 450
1262079 480
1262080 500
1262081 525
1262082 560
1262083 588 30 45 4
1262084 600
1262085 625
1262086 630
1262087 640
1262088 700
1262089 735
1262090 750
1262091 784
1262092 800
1262093 840
1262094 875
1262095 900
1262096 980
1262097 1000
1262098 1029
1262099 1050
1262100 1120
1262101 1200
1262102 1225
1262103 1250
1262104 1372
1262105 1400
1262106 1470
1262107 1500
1262108 1600
1262109 1715
1262110 1750
1262111 1960
1262112 2000
1262113 2100
1262114 2401
1262115 2450
1262116 2500
1262117 2800
1262118 3000
1262119 3430
1262120 3500
1262121 4000
1262122 4900
1262123 5000
1262124 7000 20 25
1262125 10000 10 12
1262126 243 30 45 5
1262127 324
1262128 405
1262129 432
1262130 540
1262131 567
1262132 576
1262133 675
1262134 720
1262135 756
1262136 768
1262137 810
1262138 900
1262139 945
1262140 960
1262141 1008
1262142 1024
1262143 1080
1262144 1125
1262145 1200
1262146 1260
1262147 1280
1262148 1323
1262149 1344
1262150 1350
1262151 1440
1262152 1500
1262153 1575
1262154 1600
1262155 1680
1262156 1764
1262157 1792
1262158 1800
1262159 1875
1262160 1890
1262161 1920
1262162 2000
1262163 2100
1262164 2205
1262165 2240
1262166 2250
1262167 2352
1262168 2400

    30 45 5
1262169 2500
1262170 2520
1262171 2560
1262172 2625
1262173 2700
1262174 2800
1262175 2940
1262176 3000
1262177 3087
1262178 3125
1262179 3136
1262180 3150
1262181 3200
1262182 3360
1262183 3500
1262184 3600
1262185 3675
1262186 3750
1262187 3920
1262188 4000
1262189 4116
1262190 4200
1262191 4375
1262192 4410
1262193 4480
1262194 4500
1262195 4800
1262196 4900
1262197 5000
1262198 5145
1262199 5250
1262200 5488
1262201 5600
1262202 5880
1262203 6000
1262204 6125
1262205 6250
1262206 6300
1262207 6400
1262208 6860
1262209 7000
1262210 7203
1262211 7350
1262212 7500 30 45 5
1262213 7840
1262214 8000
1262215 8400
1262216 8575
1262217 8750
1262218 9000
1262219 9604
1262220 9800
1262221 10000
1262222 10290
1262223 10500
1262224 11200
1262225 12000
1262226 12005
1262227 12250
1262228 12500
1262229 13720
1262230 14000
1262231 14700
1262232 15000
1262233 16000
1262234 16807
1262235 17150
1262236 17500
1262237 19600
1262238 20000
1262239 21000
1262240 24010
